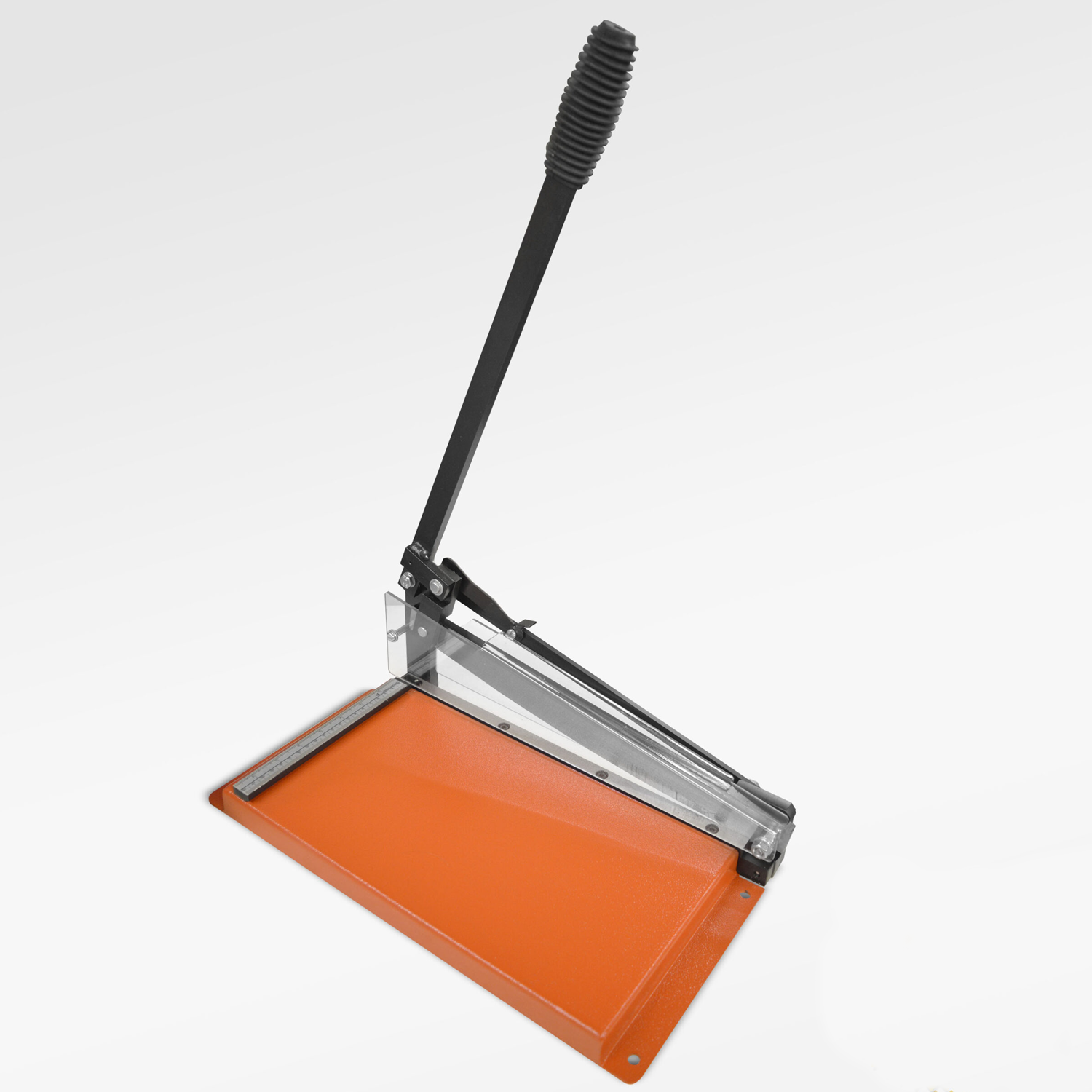

DM 9001 Guillotine cutter

Starting from: 495 €

The DM 9001 precision shear is designed to perform clean and perfectly controlled cuts on a wide range of materials. It is capable of cutting aluminum and brass up to 1.5 mm thick, technical materials such as FR4, GRP, and PCB laminates up to 3.175 mm, as well as plastics up to 2 mm.

Highly valued in the electronics industry for cutting printed circuit boards, this shear is also popular with sign makers, jewelers, engravers, as well as sublimation and trophy manufacturing centers.

It is an essential workshop tool for the precise cutting of technical plates such as Metalphoto, Idmark, Alumamark, Polycolor, and many other specialized substrates.

Safety and precision are guaranteed for reliable, professional work with every use.

Technical data sheet

Features:

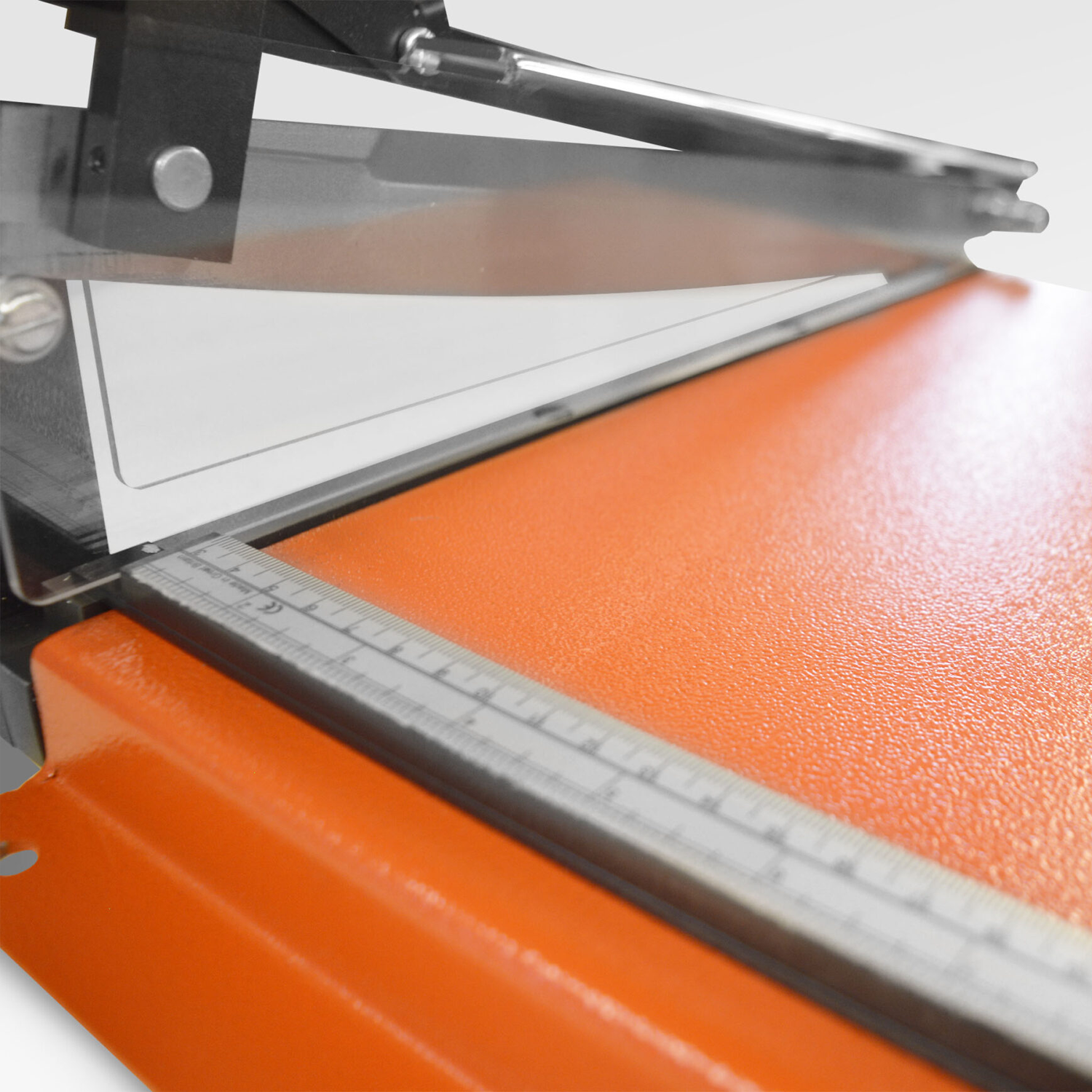

– Upper and lower blades made of hardened Sheffield steel, adjustable for optimal cutting.
– Full protection: transparent PETG guard and safety lock to prevent unauthorized use.
– Full steel construction, epoxy-coated steel cutting table for maximum durability.
– Integrated dual measurement scale with a notch to hold material during cutting.
– Cutting capacity: 305 mm (table width: 225 mm, compatible with wider materials).
– 4 mounting points for stable workbench installation.
– Spare blades available upon order.

Features:

DM 9001 Guillotine:

– Cutting capacity of 305 mm / 1.5 mm thickness for aluminum
– Dual scale measuring graduation (metric and imperial) with a holding notch, ensuring rigorous positioning and precise cutting of laminates or sheets during the operation

Dimensions:

440 mm L x 245 mm W x 635 mm H

Weight:

8 Kg

This accessory is compatible with...

DuraBlack

DuraBlack aluminum is a true CO₂ laser-engravable metal that requires no pre-treatment, offering a durability of 8 to 10 years.

During engraving, the laser beam interacts with the black layer, producing a high-contrast white marking on a matte black background, which is ideal for barcode scanning.

It consists of a multi-level coating on an aluminum base, resistant to abrasion, without requiring additional protection. It is a robust material, suitable for applications in harsh environments.

View product

AlumaJet

AlumaJet is a ready-to-use anodized aluminum sheet designed for direct color printing using a water-based inkjet printer, without the need for prior treatment.

It offers high image quality with a vibrant finish while maintaining the durability and premium appearance of aluminum.

Ideal for quick, durable, and customized creations, AlumaJet is available in A4 and A3 formats with a Satin Silver finish, 0.30 mm thick.

View product

Polycolor

Polycolor, a photosensitive anodized aluminum, provides an innovative alternative to the traditional black or silver finishes offered by MetalPhoto.

This material is distinguished by its exceptional durability and its ability to withstand external elements, heat, and chemical agents, making it a reliable medium for the most demanding environments.

Particularly well-suited for machine fascias, identification panels, warning signs, safety alerts, or industrial labels, Polycolor combines robustness with aesthetics. Its varied and attractive color palette allows for limitless customization in terms of hues, shapes, and dimensions, thereby meeting all design and functional requirements.

Thanks to a perfectly mastered manufacturing process, this material guarantees professional, long-lasting, and high-quality results. Polycolor stands out as a preferred choice for industrial professionals, signage manufacturers, and specialized workshops looking for a medium that is both technical and aesthetic.

View product

AlumaMark

AlumaMark is an innovative aluminum specifically designed for high-precision CO2 laser marking.

Unlike most laser-engravable materials, it enables deep black markings on silver, gold, bronze, brass, or colored backgrounds, offering exceptional contrast and a premium finish.

The marking is performed via thermal reaction (CO2 laser), without the need for chemical or mechanical engraving. This technology allows for the reproduction of grayscale shades and halftones, ideal for printing photographs, detailed logos, or complex illustrations.

Versatile, durable, and aesthetic, AlumaMark is perfectly suited for the most demanding applications: signage and manufacturer plates, name badges, industrial identification, trophies, personalized objects, etc.

View product

MetalPhoto

MetalPhoto is a photosensitive anodized aluminum material designed to create durable, high-quality markings.

It features a special anodized layer that allows images or text to be encapsulated within the metal. This process offers exceptional resistance to scratches, corrosion, UV rays, chemicals, and extreme temperatures.

Lightweight and robust, this material is widely used for traceability, identification plates, durable signage, and military or aerospace applications.

View product

ID-Mark

ID-Mark is a photosensitive aluminum or polyester plate that can be developed simply with water.

This fast and easy-to-implement process allows for precise, durable, and high-quality marking in just a few minutes, without complex equipment.

ID-Mark offers a wide range of materials and colors, ideal for manufacturing labels, signage plates, or professional front panels.

Whether for planned needs or last-minute markings, ID-Mark is the ideal solution for creating attractive, functional, and resistant labels.

View product
