Mira 9

From: 9360 €

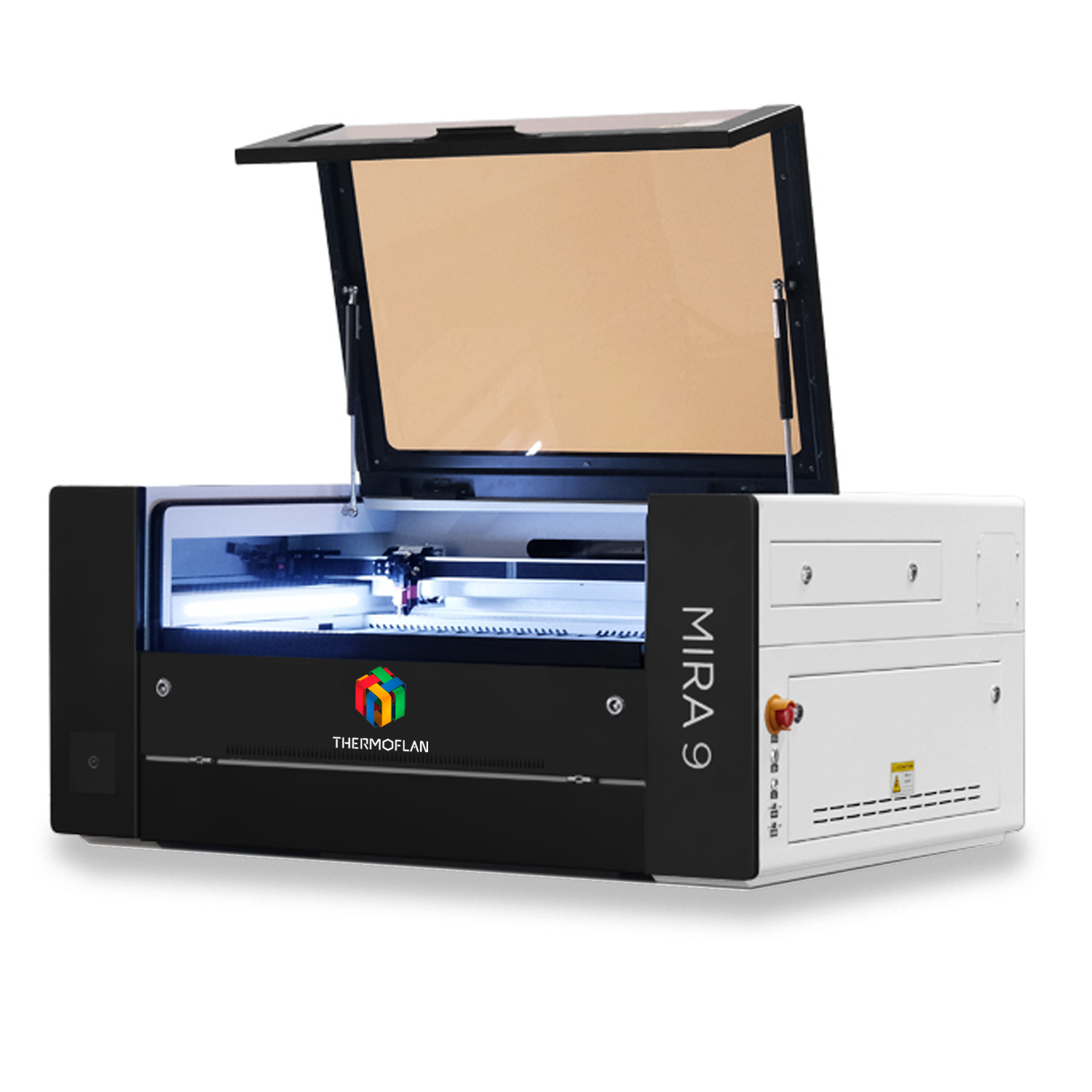

The Mira 9 CO₂ laser engraving and cutting machine, equipped with a glass tube, is capable of creating clean cuts and sharp engravings on a wide variety of materials.

The high-quality tube offers a relatively long service life (approximately 1500 hours) while maintaining high performance.

Cooled by a water system, the tube temperature remains stable during long working hours. Thanks to this thermal stability, the machine maintains optimal performance, even during intensive use.

Number of colours:

Single color

Shape:

Relatively flat shape

Cylindrical shape

Materials:

View available materials

Discover...

Technical sheet

– Laser source: glass tube or RF metal tube ensuring excellent performance in precision cutting and engraving.
– Integrated water chiller, extraction turbine, and air pump.
– Engraving speed up to 2000mm/s with the RF tube and 1200 mm/sec with the glass tube.
– Robust and secure with a steel frame capable of supporting up to 25 kg on the bed.
– All-in-one system with integrated extraction and cooling.
– Autofocus included.
– Ruida controller with simplified keyboard access.
– Active airflow to remove fumes and prevent dust accumulation on the material.

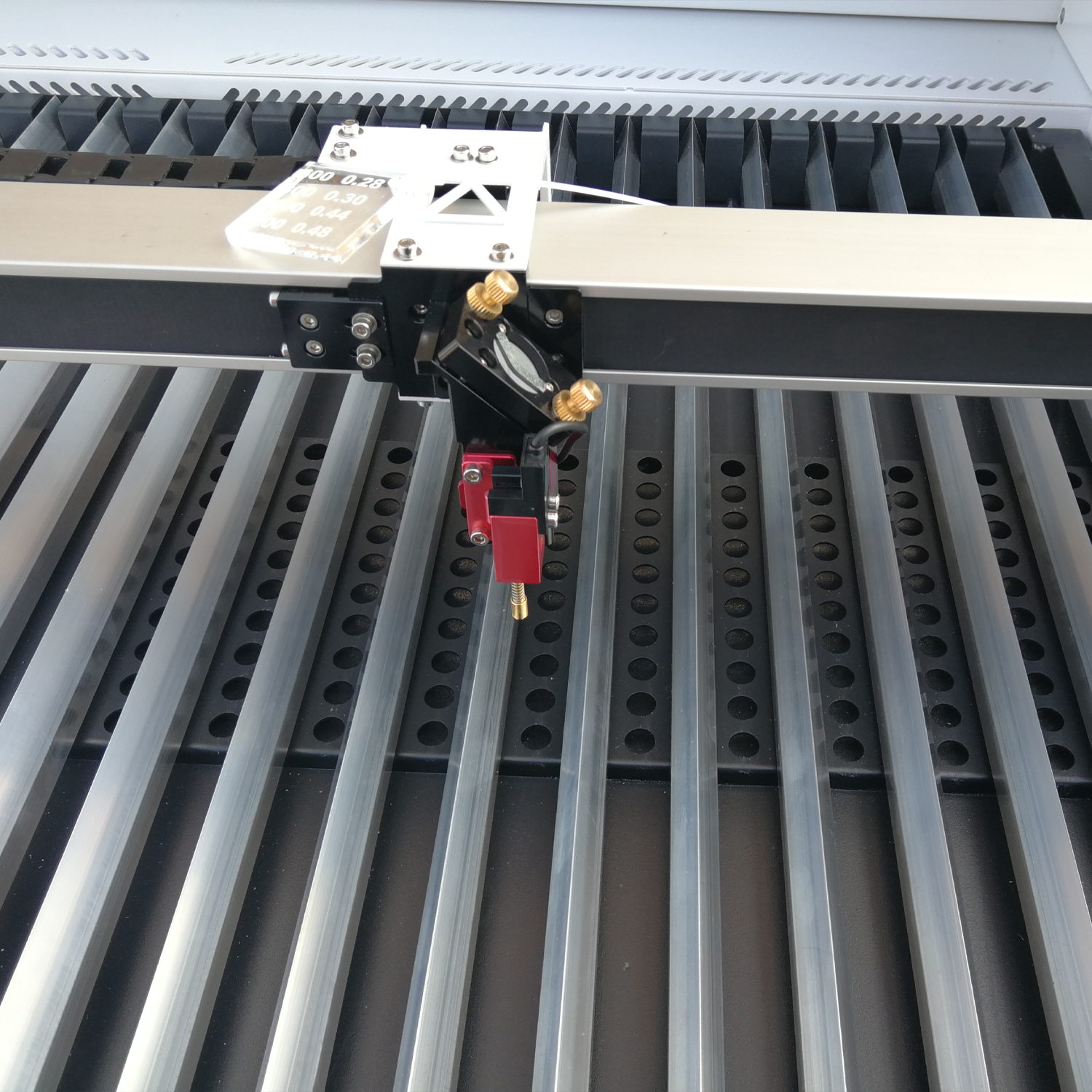

– 2 work tables: blade and honeycomb, adapted for engraving and cutting.

Features:

Laser source

Premium CO2 glass tube
Reci CO2 glass tube
RF CO2 metal tube

Available power

40 W – 60 W – 80 W Premium
75 W – 100 W Reci
30 W – 60 W RF

Work area

900*600 mm

Maximum height

From 0 mm up to 150 mm

Engraving speed

1200 mm/s

Positioning accuracy

<=0.1 mm

Automatic autofocus

By mechanical probe

Red dot positioning pointer

Yes

Cooling

S&A 5000 vapor compression water chiller

Air assist

85 W air compressor

Fan

110 W centrifugal fan for extracting dust and fumes outdoors

Work tables

Honeycomb + Adjustable blades

Interface

USB and Ethernet
USB drive
Wifi

Engraving software included

Lightburn – RD works

Supported document formats

AI – PDF – SC – DXF – HPGL – PLT – RD – SCPRO2 – SVG – LBRN – BMP – JPG – JPEG – PNG – GIF – TIF – TIFF – TGA

Input voltage

220 V AC single-phase

Machine dimensions

1300*1010*490 mm

Machine weight

150 kg

Packaging size

1370*1010*590 mm

Machine weight with packaging

190 kg

Compatible software

CorelDRAW – Photoshop – AutoCAD – Inkscape or any software capable of exporting to supported file formats

Compatible operating systems

Windows – Mac OSX – Linux

Options

– 400 m3/hour extractor to aspirate, filter, and process dust and fumes when they cannot be exhausted outdoors
– Rotary tool for engraving cylindrical objects
– Wheeled support stand with locking mechanism to ensure machine stability

Accessories available with this product

AD-Oracle extractor

The AD-Oracle extractor ensures the efficient removal of fumes, dust, and gases generated by laser engravers.

Polluted air is collected and brought to the filtration system via the extraction hose. Dust and fine particles are 99.97% eliminated by the particle filter, and odors are removed by the carbon filter.

Equipped with a high-performance filtration system, it guarantees optimal protection for both the operator and the equipment, while ensuring a clean and safe working environment.

View product

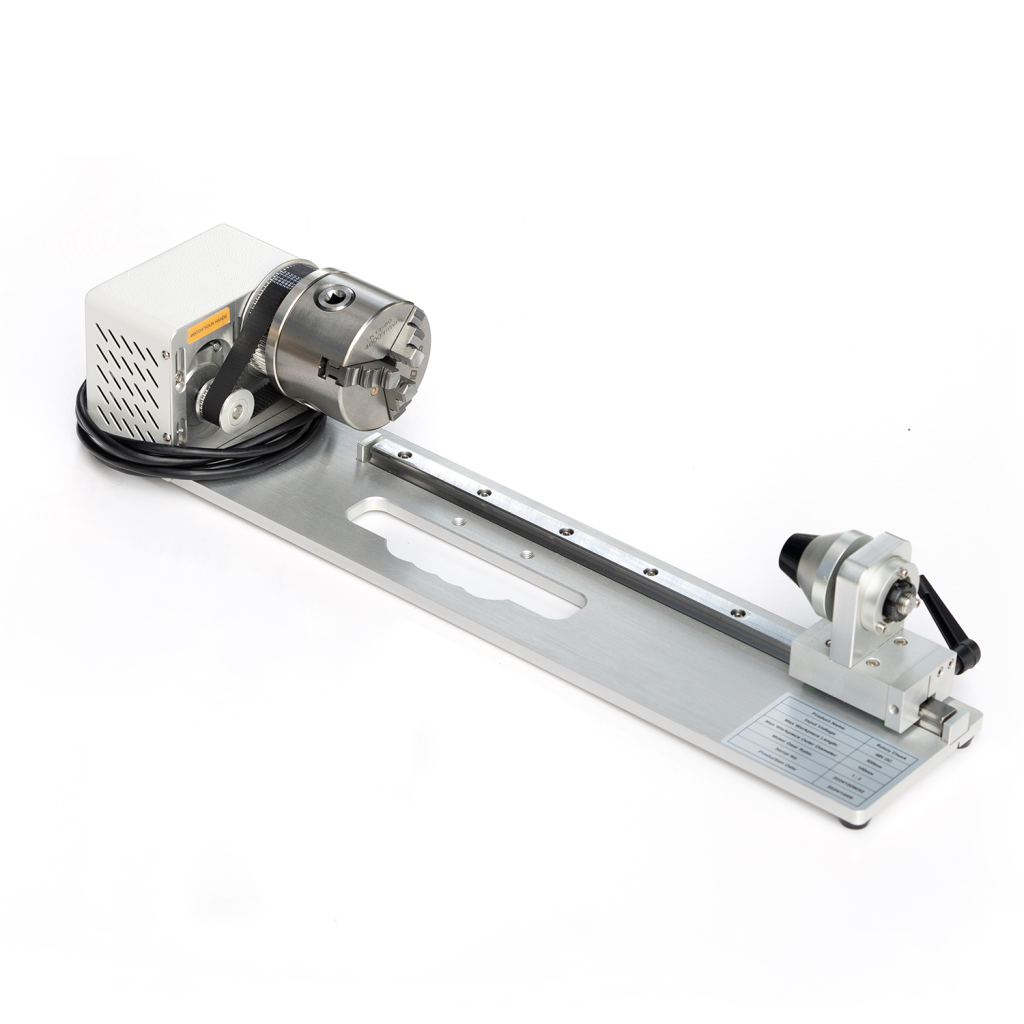

Rotary tool for Aeon lasers: Chuck

The rotary tool for Aeon lasers is an accessory designed to engrave cylindrical or rounded objects (bottles, glasses, flasks, tubes, etc.) by automatically rotating them during the engraving process.

It connects directly to the CO2 laser machine and synchronizes the rotation of the object with the movement of the laser beam. The workpiece is held in place by a chuck that grips the object firmly, ensuring stable and precise positioning throughout the operation.

The process is simple: the object is placed on the rotary roller, the design is adjusted in the software to match the circumference, and the laser engraves precisely all the way around, in a single pass or over several rotations depending on the size of the graphic.

It is an essential tool for customization shops or marking services working on cylindrical glass, metal, or plastic objects.

View product

Rotary tool for Aeon lasers: Roller

The Aeon laser rotary tool is an accessory designed to easily engrave cylindrical or rounded objects such as bottles, glasses, flasks, or tubes.

Connected directly to the CO2 laser machine via a dedicated port, it synchronizes the rotation of the object with the laser’s movement to ensure precise and consistent marking. The object to be engraved is simply placed on the device’s rollers, ensuring quick setup and stable support.

The process is simple: the design is adjusted in the software to fit the diameter of the part, then the laser engraves in a single pass or several rotations depending on the size of the visual. During the operation, the tool rotates the object smoothly, allowing for uniform engraving over the entire surface, up to 360°.

This accessory is essential for workshops specializing in the customization or marking of cylindrical objects made of glass, metal, or plastic.

View product

ILF 300 in-line pre-filter

The BOFA ILF 300 filter is an inline filter designed to capture large quantities of dust and fumes generated by laser applications.

Specially adapted for laser applications that produce high volumes of fumes and particles, it is installed inline between the laser and the main extraction system.

Laser marking and engraving processes generate significant volumes of smoke and fine particles, sometimes smaller than 20 micrometers. The ILF 300 filter increases the efficiency of the extraction system by capturing these particles upstream.

It represents an optimal solution for maintaining the performance and longevity of air treatment installations in industrial environments.

View product

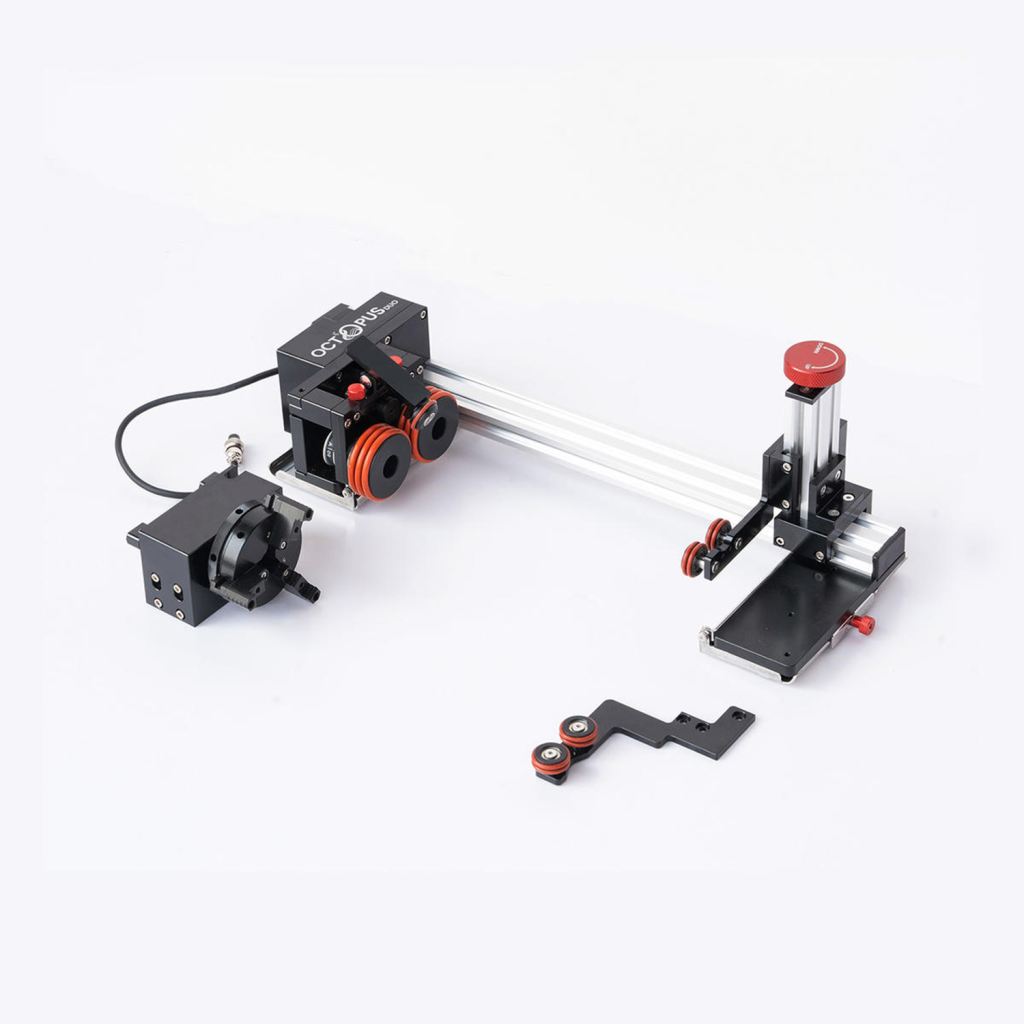

Rotary tool for Aeon lasers: Octopus

The Octopus rotary tool for CO2 lasers is designed for precise engraving on cylindrical objects. Easy to install, it connects via a dedicated plug and integrates without complex adjustments.

This model is the most advanced in the range. It combines a chuck and rollers for precise positioning of parts. Its automatic tilt allows it to adapt to different shapes, offering great versatility.

Thanks to its integrated accessories, it ensures homogeneous engraving over the entire surface. Simply configure the driver in “rotary” mode and enter the object’s diameter.

During operation, the tool rotates the piece smoothly, ensuring uniform and flawless 360° marking.

An essential accessory for engraving and personalization workshops working with cylindrical objects in glass, metal, or plastic.

View product
