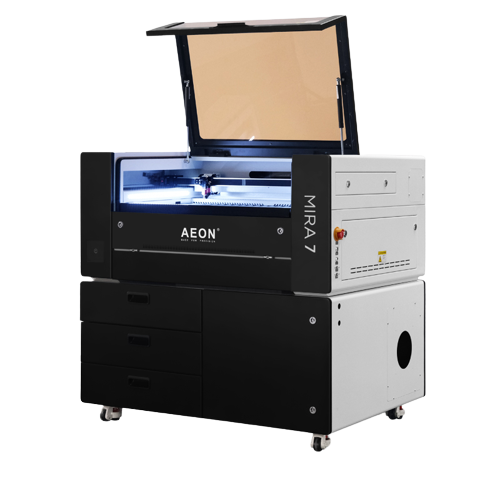

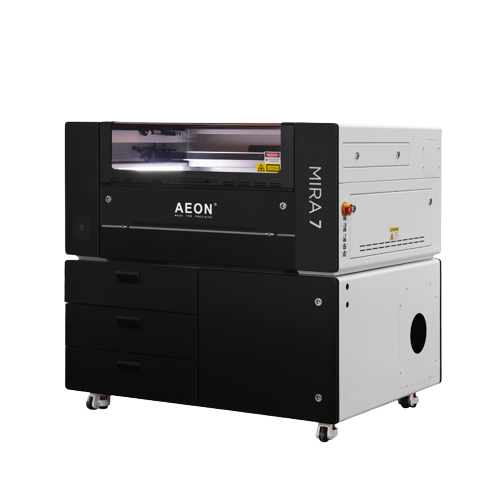

Mira 7

From: 6690 €

The CO2 Mira 7, equipped with a glass tube, is an asset for meeting customization orders, creating prototypes, or testing new products without committing to large production volumes.

It requires less effort and time to remain operational, thanks to more accessible components and simpler maintenance procedures compared to large industrial machines.

This compact laser can engrave and cut a wide variety of materials, including wood, acrylic, leather, paper, cardboard, fabric, and certain plastics.

Number of colours:
Single color
Shape:
Relatively flat shape
Cylindrical shape

Technical sheet

– Laser source: glass tube or RF metal tube ensuring excellent performance in precision cutting and engraving.
– Integrated water chiller, exhaust turbine, and air pump.
– Engraving speed up to 2000mm/s with the RF tube and 1200 mm/sec with the glass tube.
– Robust and secure with a steel frame capable of supporting up to 25 kg on the tray.
– All-in-one system with integrated extraction and cooling.
– Autofocus included.
– Ruida controller with simplified keyboard access.
– Active airflow to eliminate fumes and prevent dust accumulation on the material.
– Blade and honeycomb work table adapted for engraving and cutting.
– Optional rotary tool for engraving cylindrical objects.

Features:
Laser source

Premium CO2 glass tube
Reci CO2 glass tube
CO2 RF metal tube

Available powers

40 W – 60 W – 80 W Premium
75 W Reci
30 W – 60 W RF

Work surface

700*450 mm

Maximum height

From 0 mm up to 150 mm

Engraving speed

1200 mm/s

Positioning accuracy

<=0.1 mm

Automatic autofocus

Via mechanical probe

Red dot positioning pointer

Yes

Cooling

S&A 3000 vapor compression water chiller

Fan

110 W centrifugal fan for evacuating dust and fumes to the outside

Work table

Honeycomb + Adjustable blades

Interface

USB and Ethernet
USB drive
Wi-Fi

Engraving software included

Lightburn – RD Works

Supported document formats

AI – PDF – SC – DXF – HPGL – PLT – RD – SCPRO2 – SVG – LBRN – BMP – JPG – JPEG – PNG – GIF – TIF – TIFF – TGA

Input voltage

220 V AC single-phase

Machine dimensions

1100*845*480 mm

Machine weight

135 kg

Packaging size

1220*970*700 mm

Weight of machine with packaging

158 kg

Compatible software

CorelDRAW – Photoshop – AutoCAD – Inkscape or any software capable of exporting to the supported file formats

Compatible operating systems

Windows – Mac OSX – Linux

Options

– 400 m3 / hour extractor to suction, filter, and treat dust and fumes when they cannot be vented outdoors
– Rotary tool for engraving cylindrical objects
– Stand with locking casters that ensures machine stability

Accessories available with this product

Examples of applications using this product

Find out what this product can be used for.

FAQ on Mira 7

The choice between a Fiber laser and a CO2 laser is primarily based on a major physical difference: the beam wavelength.
The Fiber laser has a wavelength of (near-infrared), while the CO2 laser emits at (far-infrared). Since materials absorb these wavelengths differently, each source has its preferred areas of application.

Choose the right source according to your applications:

The CO2 source: Specialist for organic materials and plastics

The CO2 laser is the most versatile technology for processing non-metallic materials. The beam is perfectly absorbed by wood, glass, and the majority of polymers.

  • Marking: Wood, paper, cardboard, leather, textile, ceramic, cork, as well as anodized aluminum and lacquered metals (by removing the surface layer).
  • Engraving: Wood, glass, mirror, stone, paper, cardboard, leather, textile, cork, lacquered metals, foams, and a very wide range of plastics (PMMA/Acrylic, PA, PC, PE, PES, PET, PP, PS, PPS).
  • Cutting: Excellent performance on wood, paper, cardboard, leather, textile, cork, foams, and plastics (notably PMMA, which offers a perfectly polished, shiny edge).

Fiber Source: Specialist in metals and high-speed traceability

The Fiber laser excels on dense materials. Its wavelength is highly absorbed by all metals (including reflective metals like copper or brass) and produces high contrast on many technical plastics.

  • Marking: All metals (steel, stainless steel, aluminum, brass, copper, titanium, precious metals), anodized aluminum, as well as colored paper, leather, textiles, ceramics, foams, and many plastics (PA, PBT, PC, PE, PES, PET, PP, PS, PUR).
  • Gravure : Idéal pour la gravure profonde sur métaux (bruts, laqués ou précieux), l’aluminium (brut ou anodisé), la céramique et le miroir (retrait du tain à l’arrière).
  • Découpe : Permet la découpe de précision, mais reste limité aux métaux fins (jusqu’à 0,5 mm) dans ces configurations.

Tableau comparatif de synthèse

MaterialIntended applicationCO2 Laser choiceFiber Laser choice
Raw metals (Stainless steel, Steel, Brass, Copper…)Marking / Engraving❌ Impossible⭐ Ideal
Lacquered or anodized metalsMarking / Engraving✔️ Yes (targets the lacquer/anodization)⭐ Ideal (targets the metal)
Wood, Cork, Paper, CardboardMarking / Engraving / Cutting⭐ Ideal❌ Not suitable (except for colored paper marking)
Plastics & PolymersMarking / Engraving / Cutting✔️ Yes (excellent for cutting/engraving)✔️ Yes (excellent for high-contrast marking)
Glass & StoneEngraving / Decoration⭐ Ideal❌ Impossible (except for mirrors)

In summary:

  • Choose CO2 if you primarily work with wood, acrylic (PMMA), leather, glass, or cardboard.
  • Choose Fiber if your absolute priority is marking, traceability (barcodes, IUID), or engraving on metal parts or industrial plastics.





Sur le marché des lasers CO₂ de type « plotter », la marque Aeon Laser (gammes Mira, Elite et Super Elite) se démarque des constructeurs chinois d’entrée de gamme en se positionnant sur un segment Premium.
Ses machines intègrent des innovations mécaniques et optiques qui les rapprochent des standards de qualité et de performance des équipements occidentaux, tout en conservant un positionnement tarifaire compétitif.

Voici les avantages techniques concrets et vérifiés d’Aeon face à la concurrence chinoise standard :

Cinématique confinée le système “Clean Pack” : Sur un laser chinois classique, les rails et courroies sont exposés aux poussières et fumées, ce qui encrasse les roulements et nuit à la précision.

  • L’approche Aeon : Les axes X et Y ainsi que les courroies sont entièrement confinés dans des carters étanches.
  • Performances : Grâce à cette protection et à l’utilisation de moteurs pas à pas hybrides ou Servo, les machines Aeon atteignent des vitesses de gravure de avec des accélérations de (contre et pour un châssis standard).

Technologie double source hybride (Gamme Super Elite) : C’est l’argument technologique majeur d’Aeon. Les machines classiques imposent de choisir entre un tube en verre (DC), économique et puissant pour la découpe, ou un tube métallique (RF), ultra-rapide et précis pour la gravure.

  • La solution Aeon : La gamme Super Nova intègre les deux sources (DC + RF) sous le même capot. Le micrologiciel gère la commutation de façon transparente en a machine utilise la source RF pour graver un logo très fin, puis bascule instantanément sur le tube DC pour détourer la matière en forte épaisseur.

Architecture globale “All-in-One” : Un plotter chinois traditionnel nécessite une installation encombrante avec plusieurs périphériques au sol (refroidisseur d’eau, extracteur, compresseur d’air).

  • Le déploiement Aeon : Les gammes Mira et Super Eliteintègrent l’ensemble des périphériques à l’intérieur de leur châssis (y compris un refroidisseur industriel à compresseur équivalent CW-5200). L’encombrement au sol est réduit au minimum et tous les éléments sont synchronisés par la carte mère (remontée des alarmes de débit d’eau sur l’écran).

Sécurité active et évacuation des déchets :

  • Sécurité Classe 1 : Les machines disposent d’un châssis hermétique avec fenêtres certifiées et capteurs de sécurité redondants (Lid Interlock) coupant instantanément le faisceau à l’ouverture du capot.
  • Capteurs thermiques : Les miroirs et la tête intègrent des sondes de température. Si un miroir s’encrasse et surchauffe, la machine se met en sécurité pour éviter la casse optique ou le départ de feu.
  • Tiroir de collecte : Le fond du châssis est en forme de trémie pour guider les chutes et poussières inflammables directement vers un tiroir de récupération amovible.

Synthèse technique Aeon vs Chinois Standard :

Critère techniqueLaser Chinois Standard (Générique Ruida)Laser Aeon (Nova / Super Nova)
Protection mécaniqueRails et courroies exposés (Nettoyage fréquent)Système “Clean Pack” (Confinement étanche)
Vitesse max. / Accélération / max. /
Configuration OptiqueMono-source (Soit DC verre, soit RF métal)Double source hybride simultanée (Verre + Métal)
PériphériquesÉléments externes séparés au solAll-in-One (Tout est intégré sous le capot)
Sécurité OptiqueAucune (Vérification visuelle manuelle)Capteurs thermiques actifs sur les miroirs

The choice between an RF (Radio Frequency) tube and a glass tube primarily depends on the desired level of performance, working speed, and budget.r

Glass Tube:

r
r

    r
    t
  • CO₂ laser source using a glass tube, generally cooled by water circulation.
  • r
    t

  • Economical solution for standard engraving and cutting applications.
  • r
    t

  • High available powers allowing good cutting capacities.
  • r
    t

  • Slower response time during power variations.
  • r
    t

  • Suitable for large formats and productions not requiring extreme speeds.
  • r
    t

  • Generally lower replacement cost.
  • r

r

RF (Radio Frequency) Tube:

r
r

    r
    t
  • CO₂ laser source using metallic technology excited by radiofrequency.
  • r
    t

  • Finer and more stable beam for more precise engravings.
  • r
    t

  • Extremely fast response to power variations.
  • r
    t

  • Allows for higher engraving speeds.
  • r
    t

  • Generally longer lifespan and reduced maintenance.
  • r
    t

  • Ideal for fine marking, complex details, and intensive industrial applications.
  • r

To distinguish engraving from cutting, simply use two different colors in your file (.SVG, .DXF or .AI formats). Your software will apply a different setting for each color:

r

For Engraving (Black or Blue)

r
r

    r
  • Mode: Fill.
  • r

  • Movement: The laser scans horizontally from left to right to fill the interior of your texts or logos.
  • r

r

For Cutting (Red)

r

    r
  • Mode: Line / Cut.
  • r

  • Movement: The laser precisely follows the continuous line at low speed and high power to cut through the material’s thickness.
  • r

r

Please note: Always run engraving first and cutting last in your software’s order. If you cut first, the piece may move, and the engraving will be misaligned.

The choice of a laser depends mainly on four criteria: budget, working area, material to be processed, and laser tube power.

Budget

The budget determines the equipment level, power, and machine format. It is essential to define the actual need in order to select a suitable and scalable solution.

Working Area

  • Available formats: from 450 × 300 mm to 1600 × 1000 mm.
  • The choice depends on the size of the parts to be processed.
  • Most machines are equipped with a front/rear pass-through table, allowing processing of parts with almost unlimited length.
  • Width remains the only real constraint.

Laser Tube Power

  • Tubes from 30 W to 150 W.
  • For engraving, low power is often sufficient; higher power mainly allows for increased speed.
  • For cutting, the higher the power, the greater the thickness and cutting speed.

Materials

Each material imposes its own constraints (density, thickness, finish). The choice of power and settings depends directly on the application.

Our lasers are designed for safe use and present no danger to the operator under normal use and according to instructions.r
The lasers are classified according to different safety levels:r
r

    r
    t
  • Class 1r
    t
  • r
      r
      t
    • Lasers safe during normal operation.r
      t
    • Direct exposure to the beam remains risk-free, including when using optical observation devices.r
      r
      r
      t
    • Class 2r
        r
        t
      • Lasers emitting visible radiation between 400 and 700 nm.r
        t
      • Safe for brief exposures (up to 0.25 second).r
        t
      • Deliberate and prolonged observation of the beam is still not recommended.r
        r
        r
        t
      • Class 3r
          r
          t
        • Lasers that may exceed permitted exposure limits for direct viewing.r
          t
        • Risk of injury generally limited but requiring specific precautions.r
          t
        • We do not offer this type of laser.r
          r
          r
          t
        • Class 4r
            r
            t
          • Lasers for which direct exposure to the beam or skin is dangerous.r
            t
          • Some diffuse reflections may also present a risk.r
            t
          • Potential fire hazard.r
            t
          • Wearing appropriate protective equipment is generally necessary.r
            r
            r
            r

            Our Equipment:r
            r

              r
              t
            • Our lasers are classified as Class 2 because they are equipped as standard with a red laser pointer used for positioning, simulation, or launching work at a precise point.r
              t
            • This pointer has a very low power (less than 1 mW) and is considered safe under normal operating conditions.r
              t
            • The main working beam, however, remains entirely confined within the machine during operation.r
              r

              Compliance:r
              r

                r
                t
              • All our machines are CE compliant.r
                t
              • They meet the requirements of the Machinery Directive 2006/42/EC.r

Thanks to its precision and its ability to concentrate energy on a very fine area, the CO₂ laser allows for clean and fast cutting of a large number of materials.

Compatible Materials:

  • Abs
  • Acrylic: Pmma, Plexiglas, Polymethyl methacrylate
  • Rubber
  • Wood
  • Raw wood (thin thicknesses)
  • MDF / Medium (avoid thicknesses >6mm which produce a very burnt finish and emit a lot of smoke) -Do not use solid-dyed MDF
  • Plywood
  • Polyamide / PA / Nylon
  • Polybutylene terephthalate (PTB)
  • Polyoxymethylene / POM / Delrin
  • Polyester / PES / Thermolite / Polarguard
  • Polyethylene terephthalate / PET / Mylar
  • Polyimide / PI / Kapton
  • Polystyrene / PS
  • Polypropylene / PP
  • Rhodoid / Overhead projector transparency film
  • PVC-free foams
  • Polyester / PES
  • Polyethylene / PE
  • Polyurethane / PUR
  • Neoprene – Catches fire easily
  • Fabrics (felt, hemp, cotton, acrylic, nylon)
  • Leather
  • Paper
  • Cardboard, wood-based board
  • Foam board (cardboard+PU foam) – Styrofoam board (cardboard+Expanded Polystyrene) cuts much less effectively
  • Natural, synthetic rubbers (only if they do not contain chlorine) – Warning: generates a lot of soot and heavily clogs machines.

However, some materials cannot be cut by this process: they may melt, emit dangerous gases, or require power beyond the capabilities of the machines used

Materials that cannot be laser cut:

  • Reflective materials: mirrors, chrome-plated objects, polished metals, … (Mirrors can only be engraved with the reflective side facing the machine’s bed)
  • Most metals; however, the cutting mode can be used to mark certain metals
  • Fiberglass
  • Printed circuit board (Fiberglass + epoxy)
  • Carbon fiber
  • All materials containing chlorine, PVC, vinyl, Forbidden use, risk of fatal chlorinated gas emission
  • All materials containing fluorine: Teflon / Polytetrafluoroethylene / PTFE… Forbidden use, risk of fluorine gas emission
  • Glass
  • Reflective materials (mirror, polished metals, chrome, …) – The use of reflective materials could severely damage the machine
  • Solid-dyed Valchromat MDF – Catches fire
  • Polycarbonate / PC / Lexan / Makrolon: melts and burns
  • Expanded/extruded polystyrene (foam): melts and burns
  • Composite and/or non-homogeneous materials are generally difficult to cut cleanly with a laser

With a CO₂ laser, it is possible to engrave or mark a wide variety of materials depending on their properties and the energy level applied.

r

Compatible materials for engraving:

r
r

    r
    t
  • Rubber
  • r
    t

  • Polyester
  • r
    t

  • Polystyrene
  • r
    t

  • Wood : solid wood, plywood, MDF, veneers
  • r
    t

  • PMMA (acrylic)
  • r
    t

  • Paper and cardboard
  • r
    t

  • Leather and certain compatible textiles
  • r
    t

  • Stone : marble, slate, granite…
  • r
    t

  • Glass
  • r
    t

  • Ceramic
  • r
    t

  • Food products : chocolate, sugared almonds and certain food decoration products
  • r

r

Marking on metals (specific cases):

r
r

    r
    t
  • Lacquered or coated surfaces
  • r
    t

  • Aluminum
  • r
    t

  • Steel
  • r
    t

  • Brass
  • r

r

In certain specific cases, the cutting mode can be used to perform marking on certain compatible metals.

r

Usage limitations:

r
r

    r
    t
  • Polished or highly reflective metals should not be engraved or marked with a standard CO₂ laser.
  • r
    t

  • Certain materials may require specific settings or a suitable extraction system.
  • r

CO₂ laser marking or engraving depends on the energy delivered to the material, i.e., the applied power.r
Depending on this parameter, the beam penetrates more or less deeply into the material (with the exception of certain specific materials).r
This process offers several advantages:

r
r

    r
    t
  • Durable and unalterable marking: the result withstands time without fading or peeling off.
  • r
    t

  • Adjustable engraving: the marking depth can be adjusted according to the applied power and the desired finish.
  • r
    t

  • Economical process: no tooling wear and reduced consumable costs.
  • r
    t

  • Environmentally friendly: requires no ink, solvent, or chemical products.
  • r
    t

  • Quick setup: limited preparation and simplified production changeovers.
  • r
    t

  • High precision: allows for the reproduction of fine details, texts, logos, and complex visuals.
  • r

The term CO₂ laser refers to the type of laser source used in the machine.

  • The beam is generated in a hermetic tube containing a CO₂-based gas mixture.
  • Through a gas excitation process, this medium produces monochromatic light (a single wavelength) forming a laser beam at 10.6 microns.
  • This wavelength is particularly suited for engraving and cutting operations on various materials.

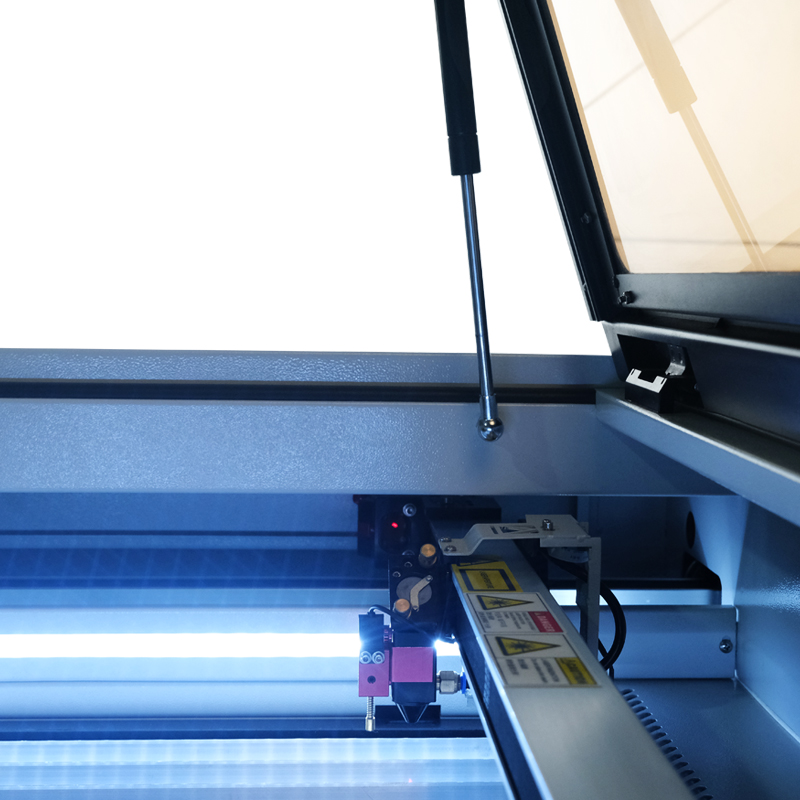

The term “Plotter” refers to the laser beam’s movement system.

  • The beam is guided by a set of mobile mirrors along two axes:
    • X : left / right movement
    • Y : front / back movement
  • This principle allows for covering large working surfaces, limited only by the machine’s mechanical dimensions.

THERMOFLAN advantages

Over 60 years of experience
Permanent stock
Best quality/price ratio
Technical availability

Ask our experts for advice

How can we help you?
Contact commercial
0
Contact Service Technique
Etre rappelé

Availability
