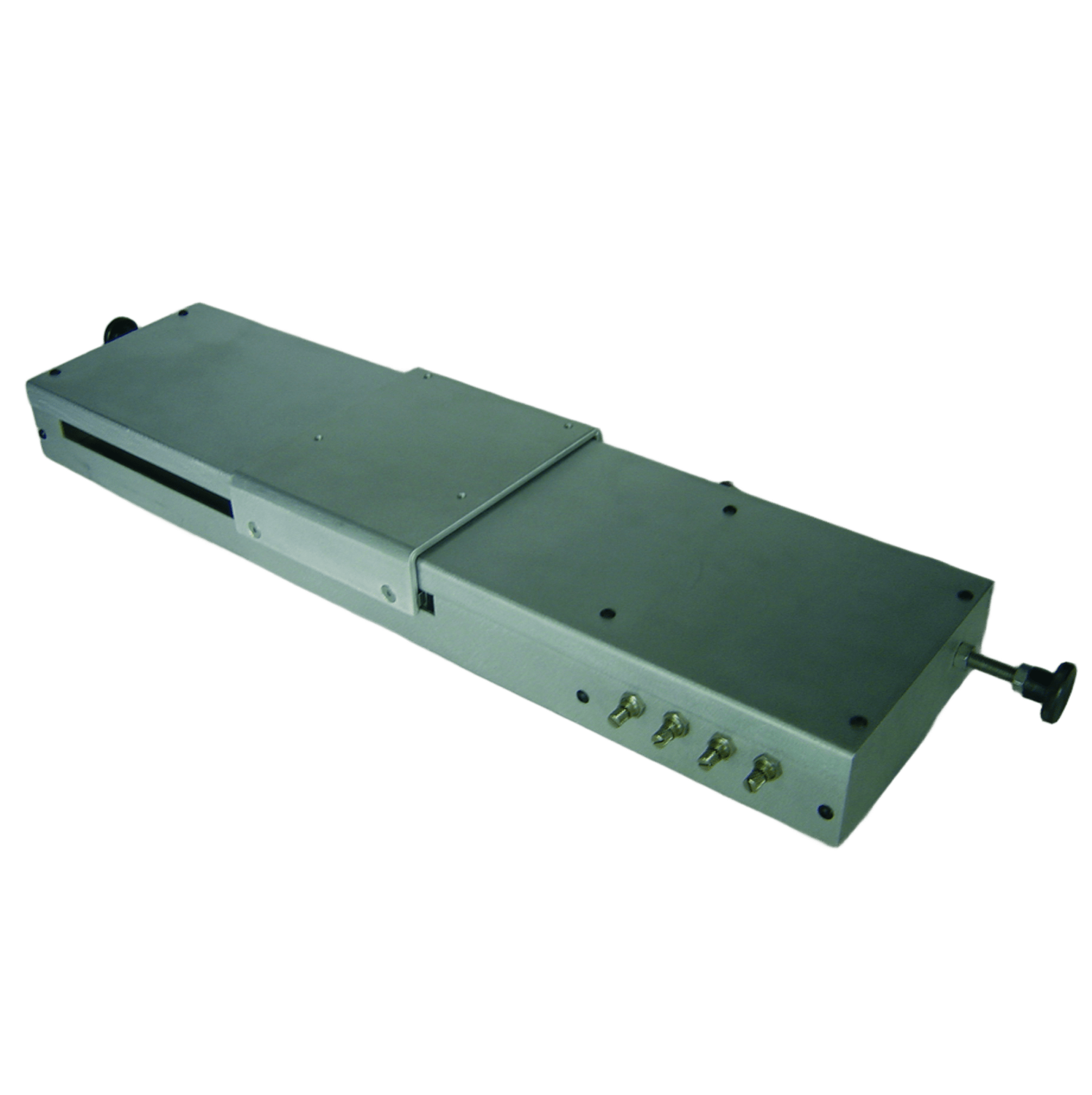

2 – 3 position conveyor
Starting from: 2298 €
The 2 to 3 position conveyor is an accessory designed to automate the movement of parts between several fixed positions or between three successive printing stations.
It offers improved alignment precision, which is essential for multi-color or technical printing requiring multiple pad passes with a high level of repeatability. It also helps reduce error risks associated with manual handling, while increasing production rates in semi-automated or automated configurations.
Its installation is quick and modular, without requiring major structural modifications, which facilitates its integration into new or existing production lines.
Compact, robust, and reliable, it adapts perfectly to automated industrial configurations and provides an efficient solution for the precise positioning of parts to be printed across multiple stations.
Technical data sheet
The 2 – 3 position conveyor is an optional mechanical accessory designed to facilitate the automated positioning of the part to be printed. It is particularly useful for applications requiring multi-color printing (maximum of 3).
– Attaches directly to the support plate of the XY table for the conveyor
– Pneumatic power supply for the movement using the machine’s air (generally 6 bars)
– Structure made of anodized aluminum or welded steel to ensure robustness and lightweight properties.
– Linear slide guidance (ball bushings or prismatic rails) ensuring smooth and precise movement.
– Fixed stroke between the three positions (generally between 80 and 150 mm depending on models and configurations).
– Positioning via mechanical stop or limit switch to ensure repeatability.
– Pneumatic actuation in most cases (double-acting cylinder with integrated distributor).
Features:
Cylinder strokes:
Electropneumatic shuttles available in 70 mm, 80 mm, 100 mm, 125 mm, or 2 x 80 mm strokes for the 3-position version.
This accessory is compatible with...
