CCD camera for GH UV printers

Starting from: 6750 €

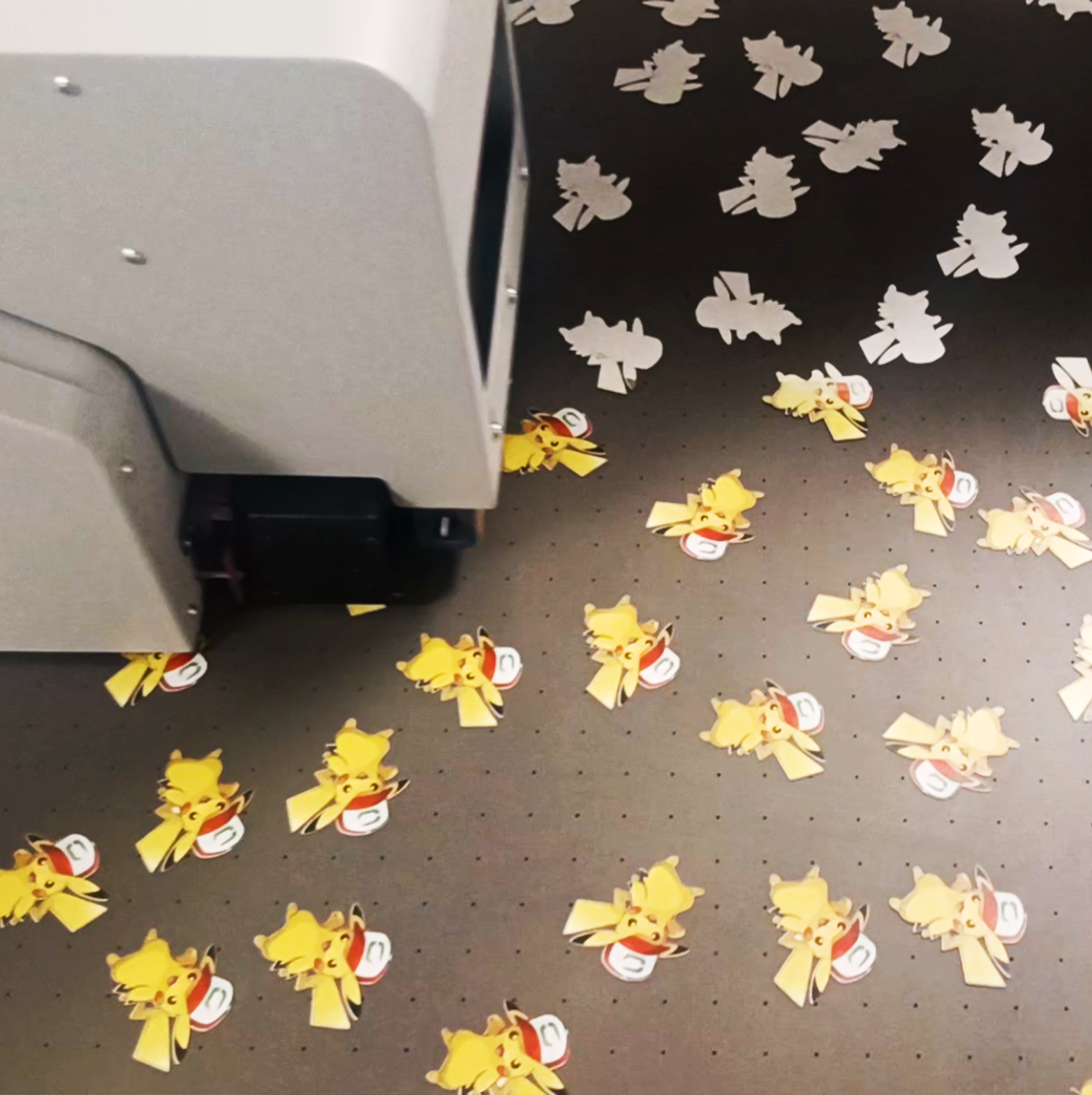

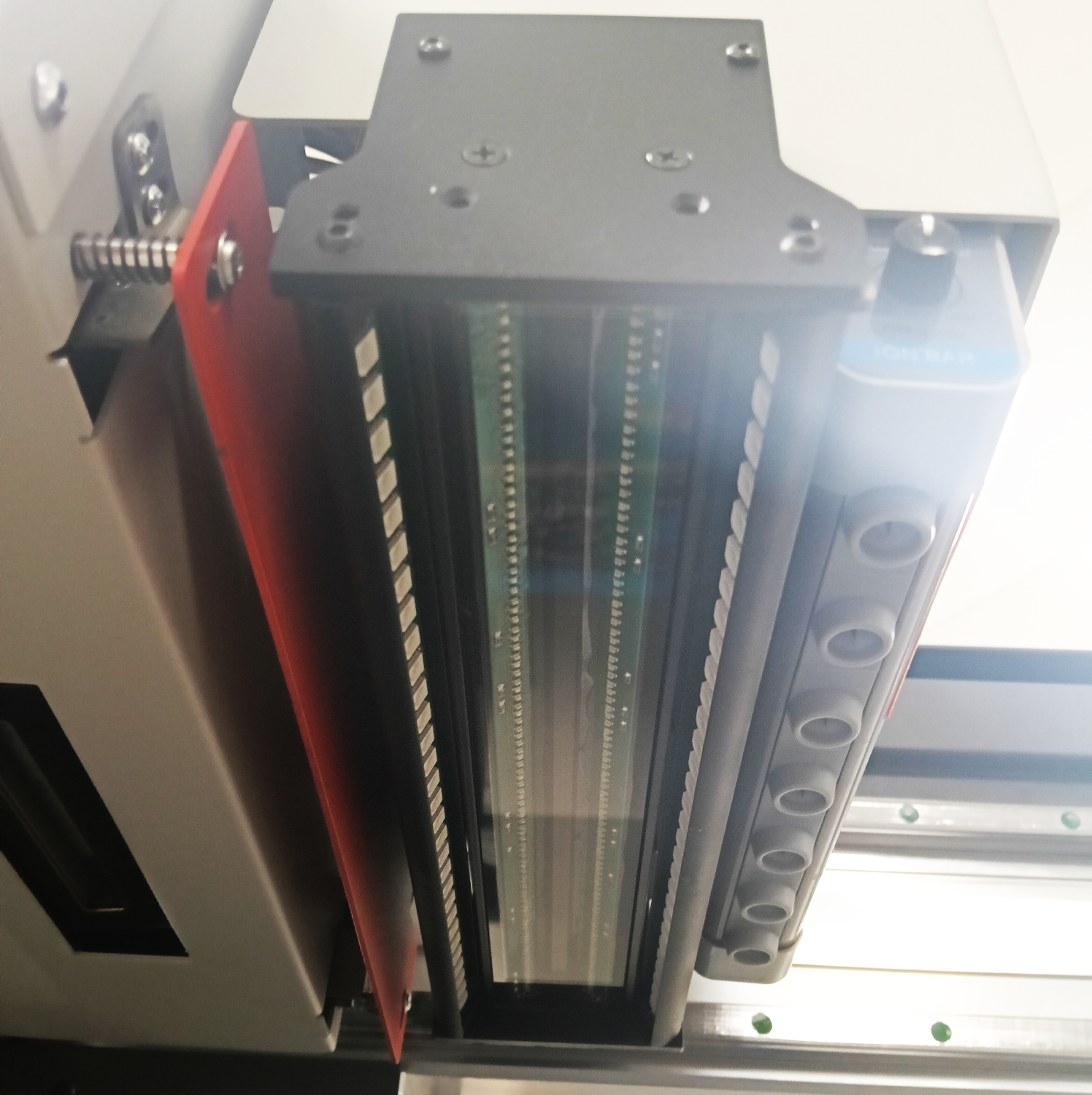

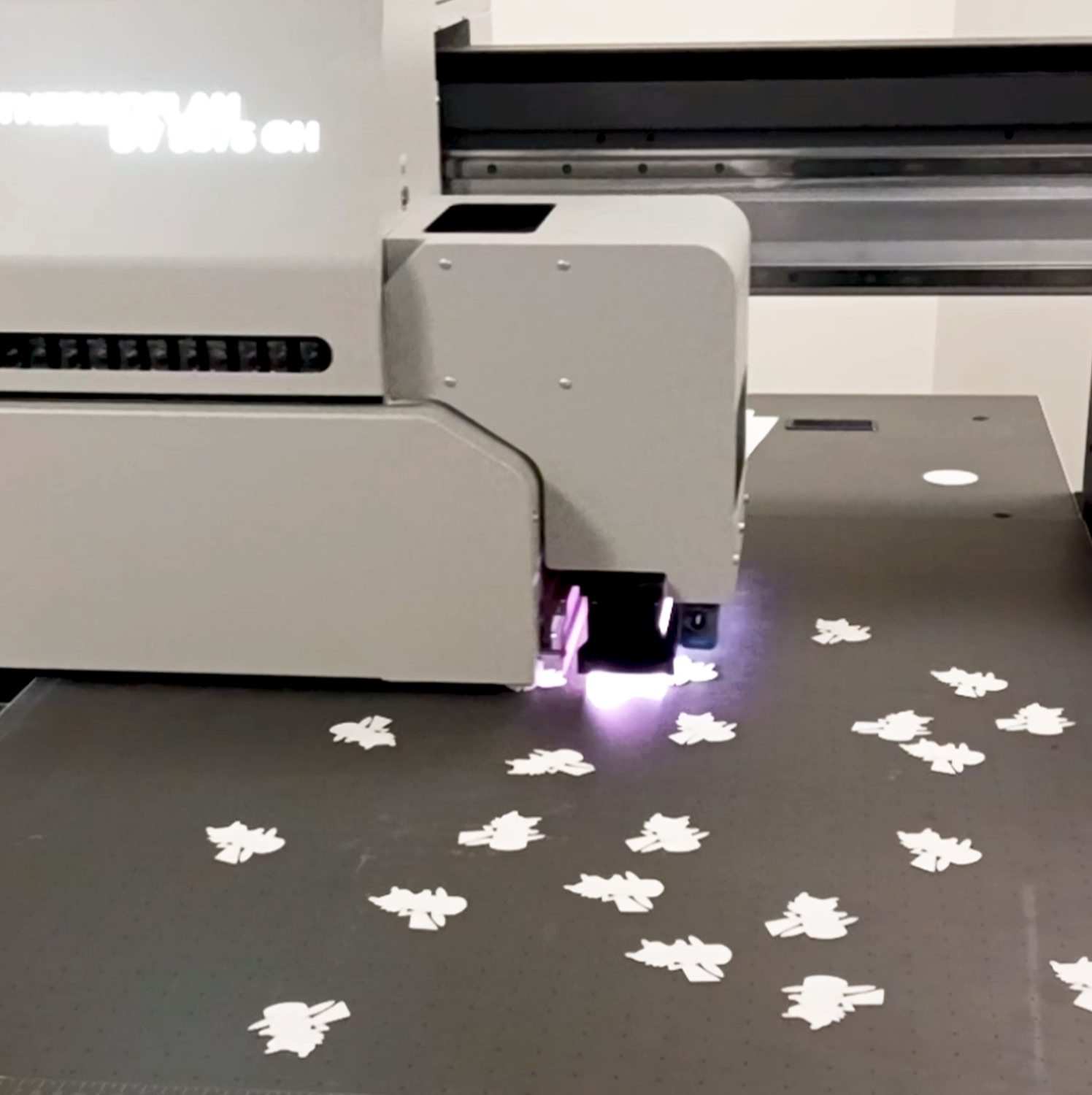

The high-resolution CCD camera allows you to scan a part, precisely position the marking, and then reproduce it identically on all other parts.

It also ensures precise control of substrate positioning and printing by automatically detecting registration marks.

It corrects offsets and distortions to guarantee a sharp and perfectly aligned print.

Thanks to these features, multi-pass printing is facilitated, errors are reduced, and productivity is significantly improved.

This technology eliminates the need for positioning jigs and greatly simplifies the use of the UV printer.

Technical data sheet

Main technical features:

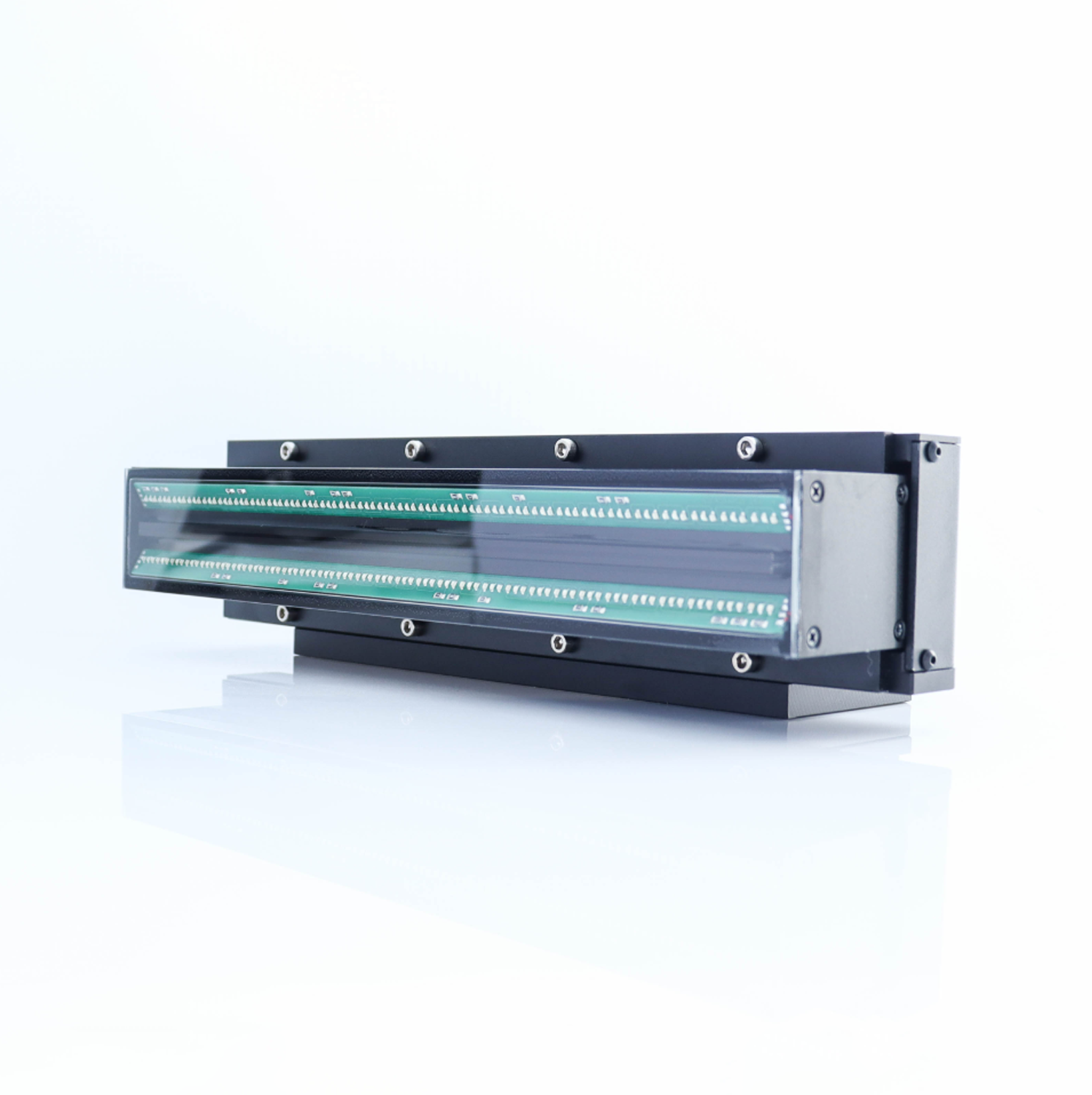

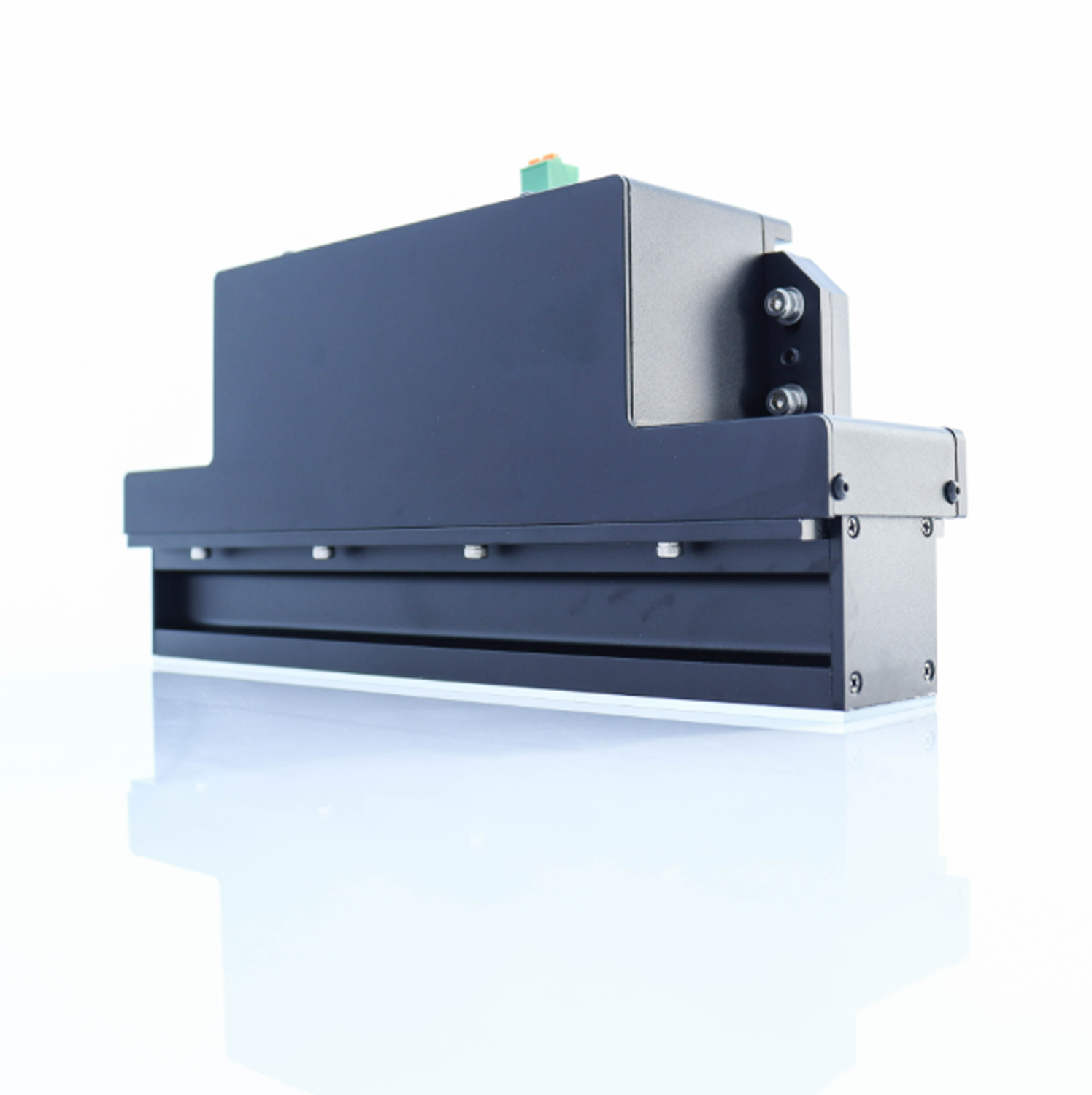

– The CCD (Charge-Coupled Device) camera integrated into GH UV printers is a high-resolution image sensor used for the precise capture of visual marks on print media.
– It operates by converting photons into electrical charges, which are then transferred and digitized to produce a detailed digital image.
– The sensor benefits from high sensitivity and low geometric distortion, allowing for reliable detection of registration marks even in variable lighting conditions.

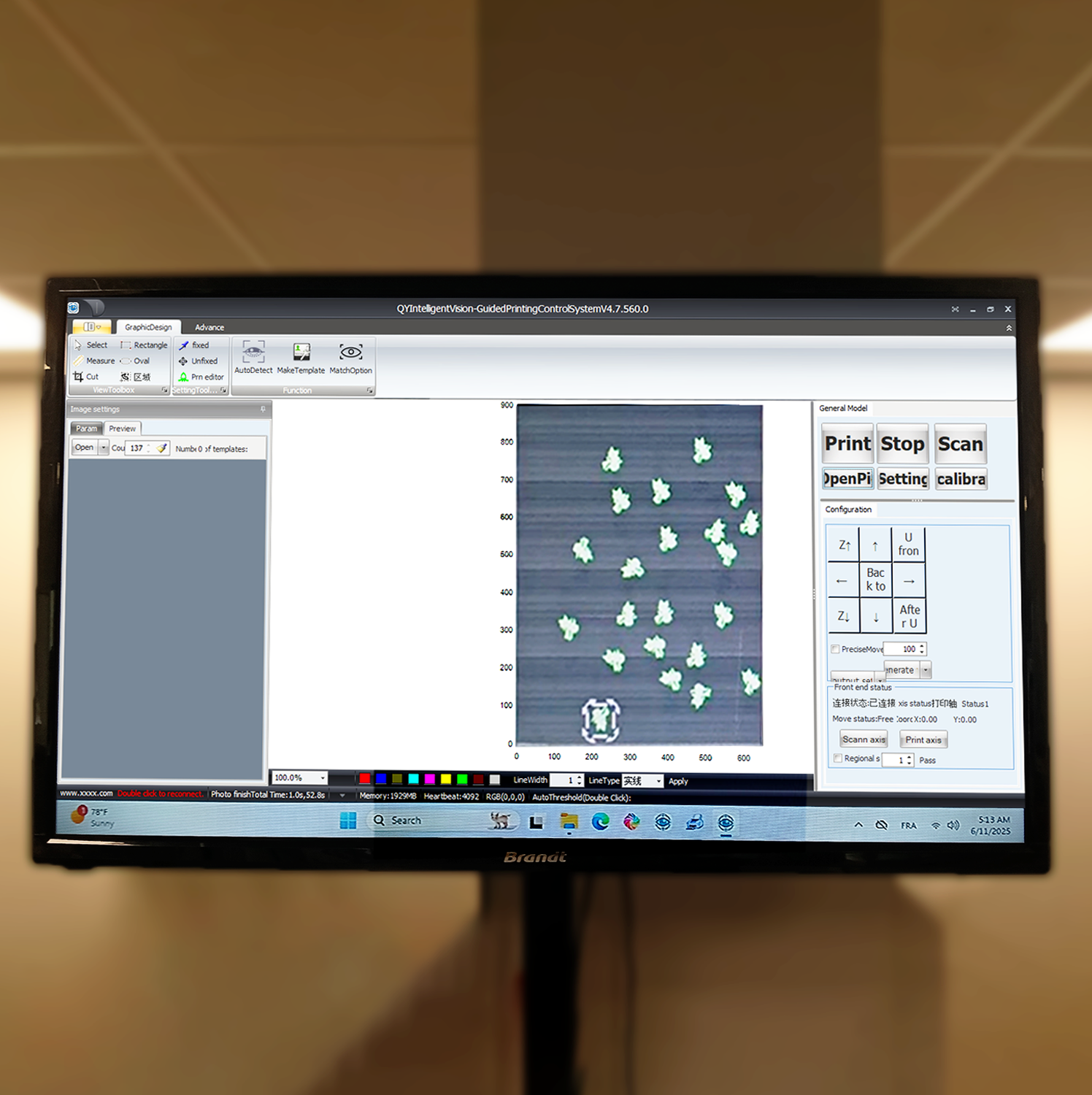

– The CCD camera is coupled with a real-time image processing system that analyzes the captured data, automatically detects marks, and calculates necessary corrections in terms of positioning (translation, rotation, scale).
– Thanks to this precision, it allows for dynamic adjustment of the print path to compensate for substrate deformations or mechanical errors, thus ensuring perfect alignment of multiple passes.

Features:
Scan width:

210 mm

Scan resolution:

1200 dpi

Precision:

0.05 mm

Scanning speed:

150-800 mm/sec

This accessory is compatible with...
