AD-Base extractor

Starting from: 2290 €

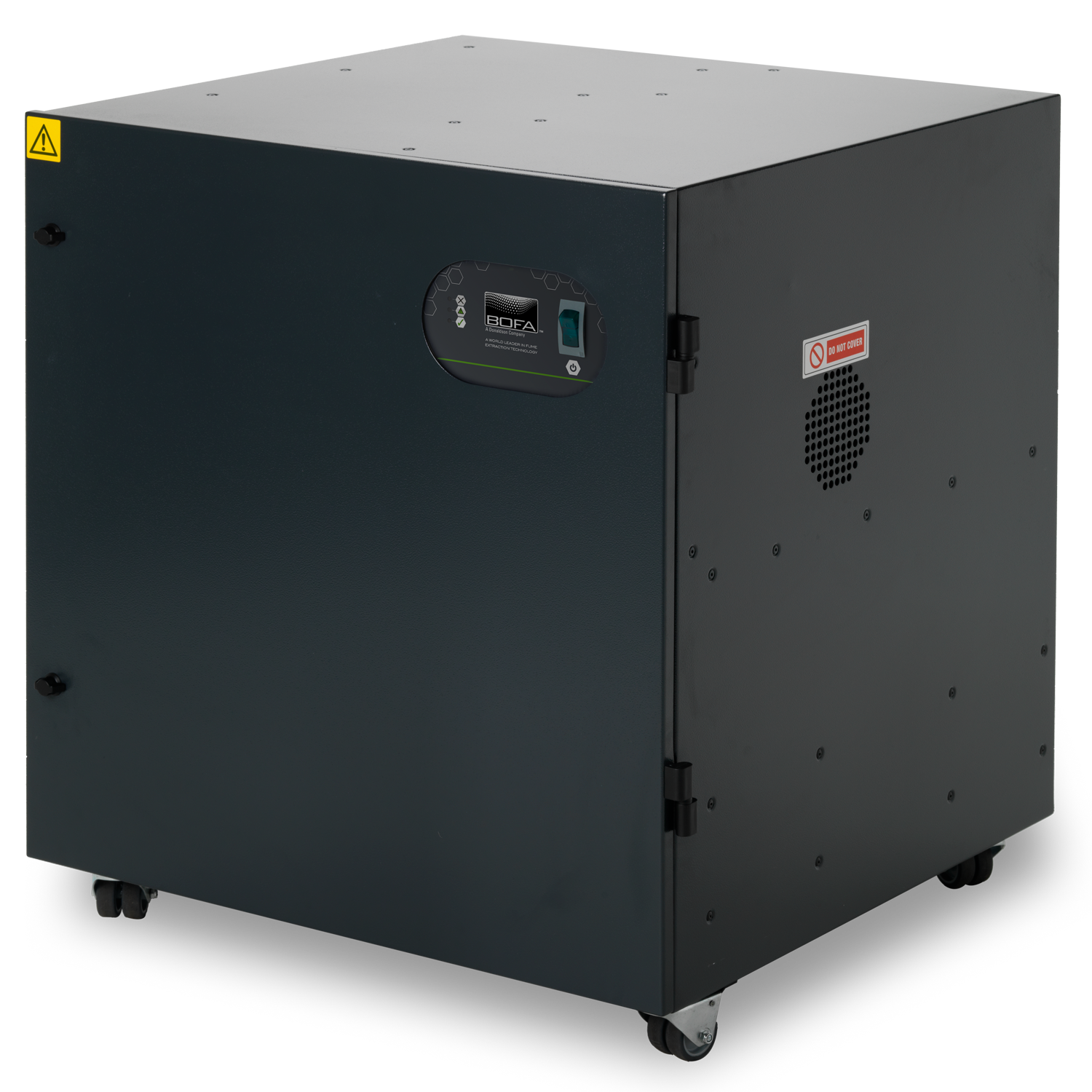

The AD-Base extractor is used for localized suction of dust, smoke particles, and gases to protect laser optics and the operator’s health.

Polluted air is collected and brought to the filtration system via the extraction hose. Dust and fine particles are 99.97% eliminated by the particle filter, and odors are removed by the carbon filter.

Compliant with international safety standards, it ensures a clean and safe working environment.

Technical data sheet

The AD-Base system features:
– A high-performance turbine with automatic voltage sensing, which adjusts automatically to adapt to any voltage type.
– Integrated reverse flow air technology that improves filter efficiency, thereby extending their lifespan.
– Automatic flow control allowing for precise parameter settings, reducing noise and optimizing the protection of both the combined filter and the patented DeepPleat DUO pre-filter.
– An ideally located control panel that offers intuitive operation.
– A robust structure that allows it to be used as a workstation for performing laser applications directly on the device.

Features:
Extraction volume:

200m³/hr

Pre-filter:

2.2m2 approx.

Filtration efficiency:

F6 – 85% @ 0.8 microns

HEPA filter efficiency:

99.995% @ 0.3 microns

Activated carbon volume:

10 kgs

Extractor dimensions:

720*675*795 mm

Extractor weight:

70 kg

Noise level:

< 63 dBA

This accessory is compatible with...
