Thermogravor
Starting from: 3225 €
The Thermogravor is a complete, high-performance machine dedicated to the manufacture of resin stamps and the development of hard polymers for die molding.
Designed and manufactured in our workshops, it integrates three essential functions — exposure, washout, and drying — combined in a compact, robust unit perfectly suited to the requirements of marking professionals.
It represents an ideal solution for those who wish to produce stamps independently, with an excellent price-to-quality ratio.
Technical data sheet

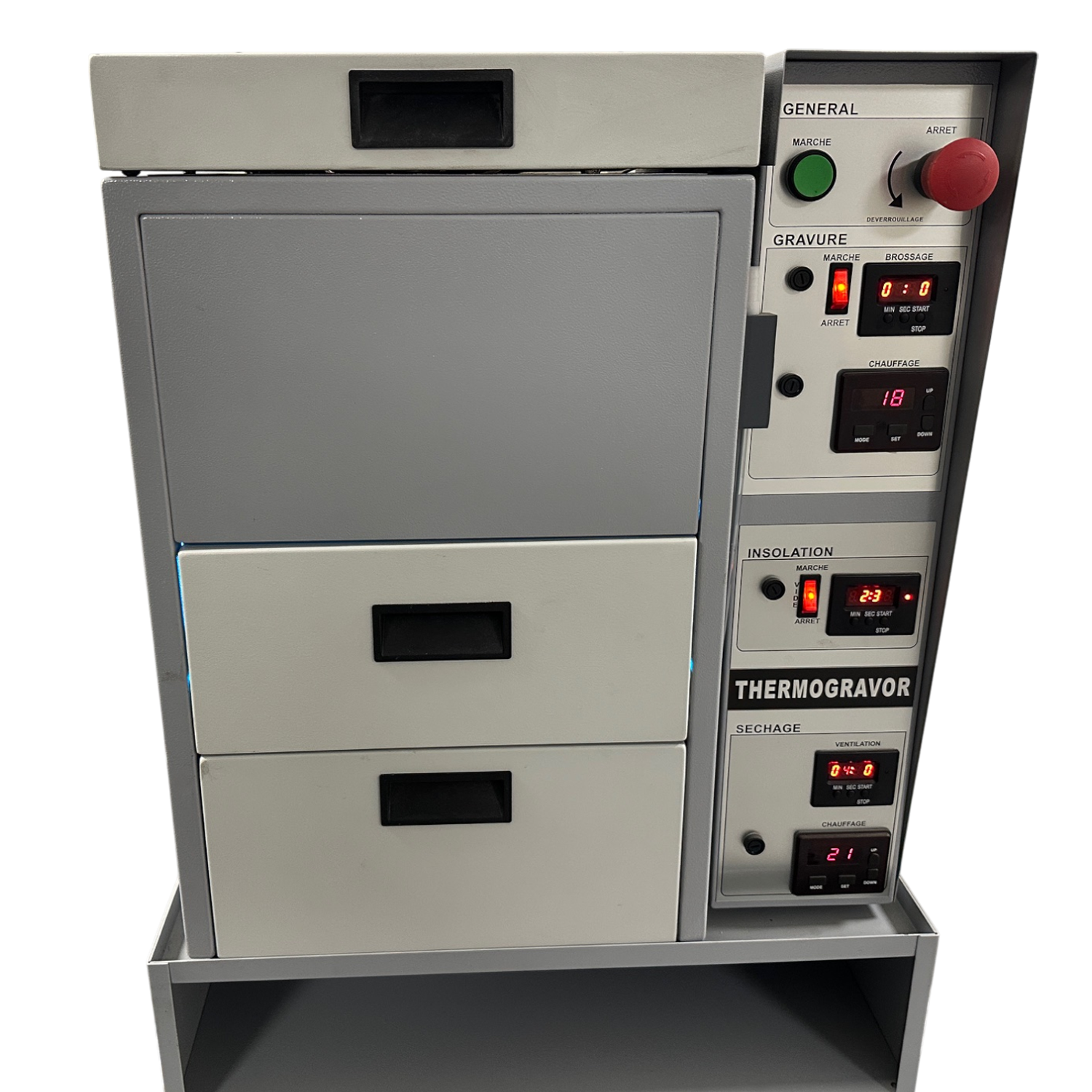

The Thermogravor photopolymer machine is composed of 3 independent parts:

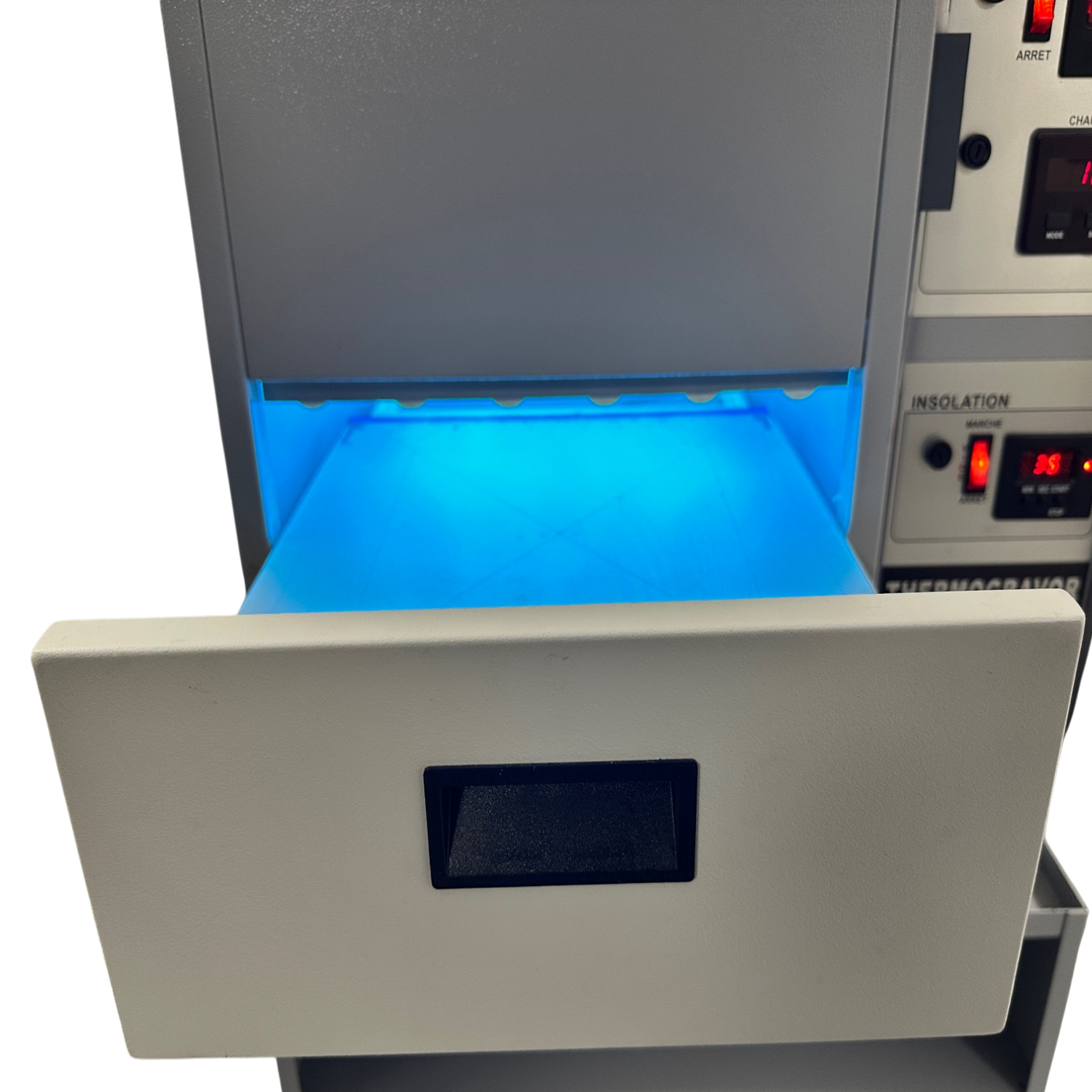

Exposure Unit – Precision and control
The exposure unit allows for precise work on liquid resin or hard photopolymer.
It is equipped with high-intensity UV tubes controlled by a digital timer with memory and an audible alarm, ensuring optimal exposure control.
An integrated vacuum pump guarantees perfect adhesion of the positive film to the photopolymer, while the calibrated glass plate and its adjustment shims offer high stability during the production of flexible resins.
The dedicated support for the post-exposure tray and the integrated compressor for removing air bubbles complete this high-precision assembly.
Washout Unit – Reliability and cleanliness
The washout unit, entirely made of stainless steel, ensures uniform development of flexible resins and hard polymers.
Its electronic thermostat accurately controls the bath temperature, while the digital timer with memory facilitates the repetition of cycles.
The external washout mechanism prevents any contamination and significantly reduces the risk of clogging or premature wear.
Drying – Uniform and controlled hardening
The drying module features three independent compartments, allowing for progressive and uniform hardening of photopolymers.
Each compartment has precise thermostatic regulation and a programmable digital timer, ensuring the repeatability and reliability of the results.
Option
Support cabinet with integrated shelves, ideal for optimizing workspace and facilitating the storage of accessories.
Features:
Exposure Unit:
– UV tubes with digital timer equipped with memory and alarm for exposure control.
– Vacuum pump to press the positive film onto the negative or the film onto the photopolymer.
– Glass plate with locking system and calibration shims for the manufacture of flexible resins.
– Support system for holding the plastic tray required for post-exposure of the resin.
– Compressor to pierce air bubbles during the creation of resin stamps.
Engraver:
– Stainless steel component: tank for the guidance system.
– Electronic thermostat for water temperature regulation.
– Digital timer with alarm and memory for brushing time control.
– Engraving mechanism located outside the water to prevent soiling and blockage issues of the moving part.
Drying:
– 3 drying compartments.
– Temperature regulation via electronic thermostat.
– Digital timer with alarm and memory for drying time control.
Option:
Support cabinet with shelves for accessory storage.
